# ExCL Remote Development

Getting started with ExCL Remote Development.

## Roadmap for Setup

If you are new to remote development on ExCL here is a roadmap to follow to set important settings and to get familiar with remote Linux development.

1. [Access ExCL](https://docs.excl.ornl.gov/excl-support/access)
2. Setup SSH: [SSH Keys for Authentication | ExCL User Docs](https://docs.excl.ornl.gov/software/git#ssh-keys-for-authentication)
   * Bonus: [SSH-Agent and SSH Forwarding](https://docs.excl.ornl.gov/software/git#ssh-agent-and-ssh-forwarding)
3. Setup Git
   1. [Git SSH Access | ExCL User Docs](https://docs.excl.ornl.gov/software/git#git-ssh-access)
   2. [Setup Git access to code.ornl.gov | ExCL User Docs](https://docs.excl.ornl.gov/software/git#setup-git-access-to-code.ornl.gov)
4. Setup VS Code Remote Explorer: [Visual Studio Code Remote Explorer | ExCL User Docs](https://docs.excl.ornl.gov/quick-start-guides/visual-studio-code#remote-explorer)
   * Important: Make sure to check the setting Remote.SSH: Lockfiles in Tmp.
5. [Setup FoxyProxy](https://docs.excl.ornl.gov/quick-start-guides/excl-remote-development#setup-foxyproxy). This enables access to [ThinLinc](https://docs.excl.ornl.gov/~/revisions/tgK4OWTltCS04RkJelGW/quick-start-guides/thinlinc) as well as any other web services running on ExCL systems.
6. Now you are ready to follow any of the other Quick-Start Guides.

## Setup FoxyProxy

1. Launch SOCKS dynamic proxy forwarding to the login node using dynamic forwarding with SSH.\
   On Linux, macOS, or Windows, via the SSH flag `-D`

   ```
    $ ssh -D 9090 <Username>@login.excl.ornl.gov
   ```

   or in the ssh config add the `DynamicForward` option

   ```
   DynamicForward 9090
   ```

   An alternative approach on Windows is to use MobaSSHTunnel to set up Dynamic Forwarding. See [Jupyter Quickstart](https://docs.excl.ornl.gov/quick-start-guides/jupyter-quick-start.md) for more information on port forwarding in Windows. This approach is nice, since it can be configured to auto-start with MobaXTerm.
2. Setup FoxyProxy\
   Install the FoxyProxy [Chrome extension](https://chrome.google.com/webstore/detail/foxyproxy-standard/gcknhkkoolaabfmlnjonogaaifnjlfnp) or [Firefox extension](https://addons.mozilla.org/en-US/firefox/addon/foxyproxy-standard/).

   Setup FoxyProxy by adding a new proxy for localhost on port 9090. Then add the regular expression URL pattern `.*\.ftpn\.ornl\.gov.*` to forward ThinLinc traffic to ExCL. When available, make sure to check on the Proxy DNS option.
3. Turn FoxyProxy on\
   FoxyProxy does nothing until you pick a mode. Click the FoxyProxy icon in the browser toolbar (pin it from the extensions menu if hidden) and select **Proxy by Patterns**. Importing settings or reinstalling resets this to off.

![Foxy Proxy Settings](https://4244690715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-McQDUQ3llzFCPZiz6Wq%2Fuploads%2Fgit-blob-c5499d7e8fcca5b8a4e6cc63379990407e754ce8%2Ffoxyproxy-settings.png?alt=media)

![FoxyProxy popup with Proxy by Patterns selected](https://4244690715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-McQDUQ3llzFCPZiz6Wq%2Fuploads%2Fgit-blob-3e887399bd13256142357efb35c022f2e22a4db9%2Fenable-foxyproxy.png?alt=media)

{% hint style="warning" %}
**Reminder**: You will need to re-do step 1 in [Setup FoxyProxy](https://docs.excl.ornl.gov/quick-start-guides/excl-remote-development#setup-foxyproxy) each time you want to connect to ExCL to form the Dynamic Proxy tunnel via SSH to the ExCL network.
{% endhint %}

{% hint style="warning" %}

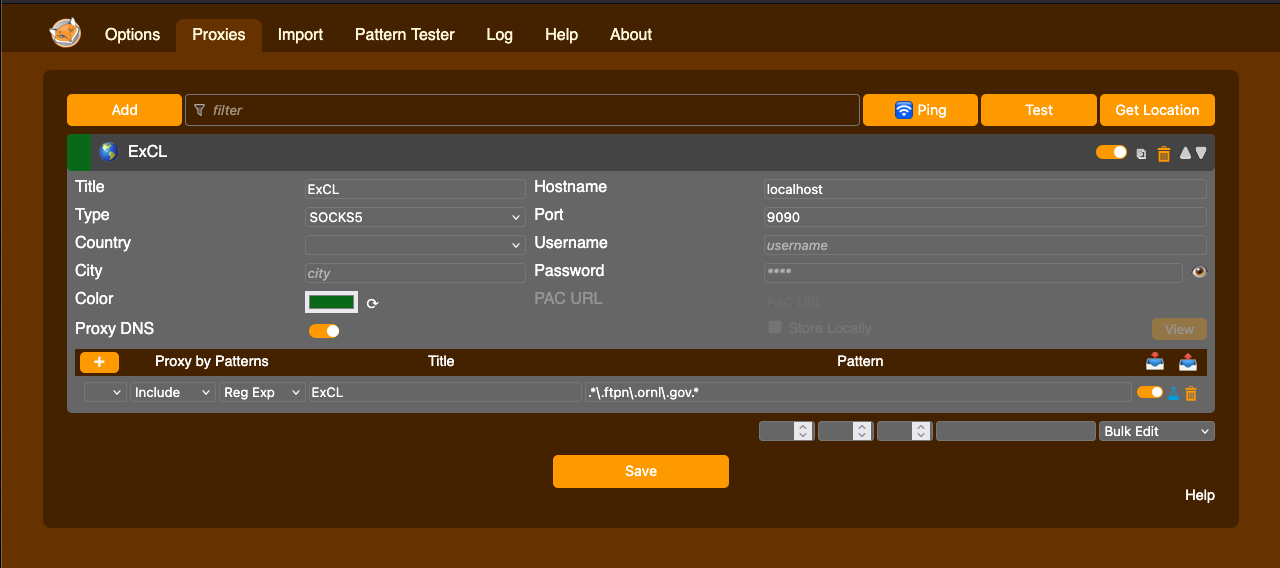

**Note**: If you are on a Mac system, you will need to check on the proxy DNS setting for the ExCL proxy config.

<img src="https://4244690715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-McQDUQ3llzFCPZiz6Wq%2Fuploads%2Fgit-blob-e70b366e75ad17ed9bb8f66b7bcb3ec5cfe2046c%2Ffoxyproxy-settings-mac.png?alt=media" alt="Foxy Proxy Proxy DNS Settings for Mac" data-size="original">
{% endhint %}

{% hint style="warning" %}
**Warning**: Do not try running the Dynamic Proxy in WSL. It's harder to set up and has performance issues.
{% endhint %}

### Troubleshooting “This site can’t be reached”

1. **Is the tunnel up?** See step 1.
2. **Is FoxyProxy active?** See step 3.
3. **Is FoxyProxy Configured Correctly?** See step 2.
